| Detail Information |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Service Center Available |
| Product Name: | Sand Core Shooting Machine | Weight: | 2000kg |
| Voltage: | 220v/380v/415v | Warranty: | 1 Year |
| High Light: | Energy Saving Sand Core Machine,Foundry Sand Core Shooting Machine,Energy Saving Sand Core Shooting Machine |
Product Description

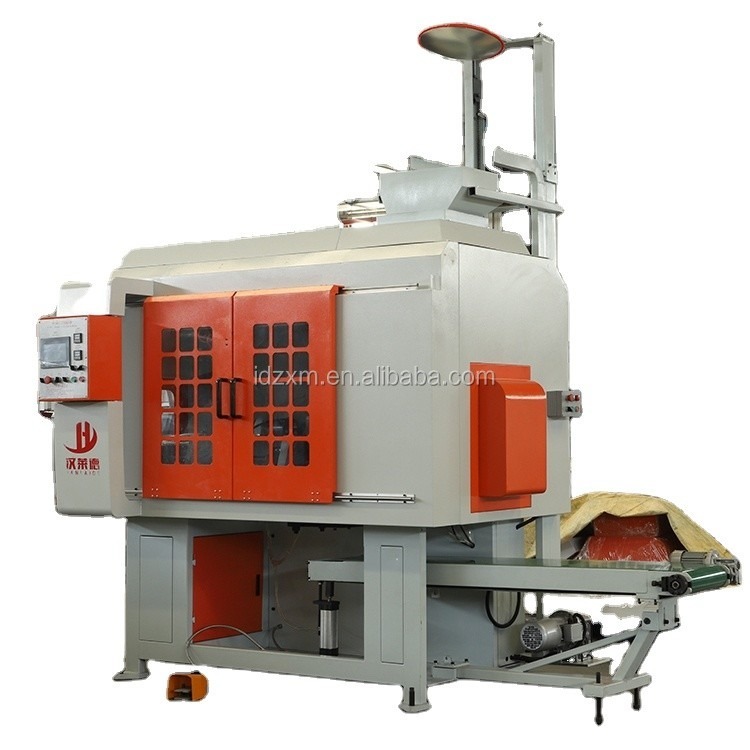

Energy Saving Automatic Shooting Sand Core Machine for Foundry
| Maximum sand core weight | 6KG |
| Maximum core box size | 400*280*200 |
| Heating plate | 9.6KW |
| Core stroke | 150MM |
| conveyor | 2200*400*100MM |
| transfer speed | 72MM/S |
CHARACTERISTIC
1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.
2. there are three modes: manual, single action and automatic.
3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .
4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.
5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.
6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.
7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.
